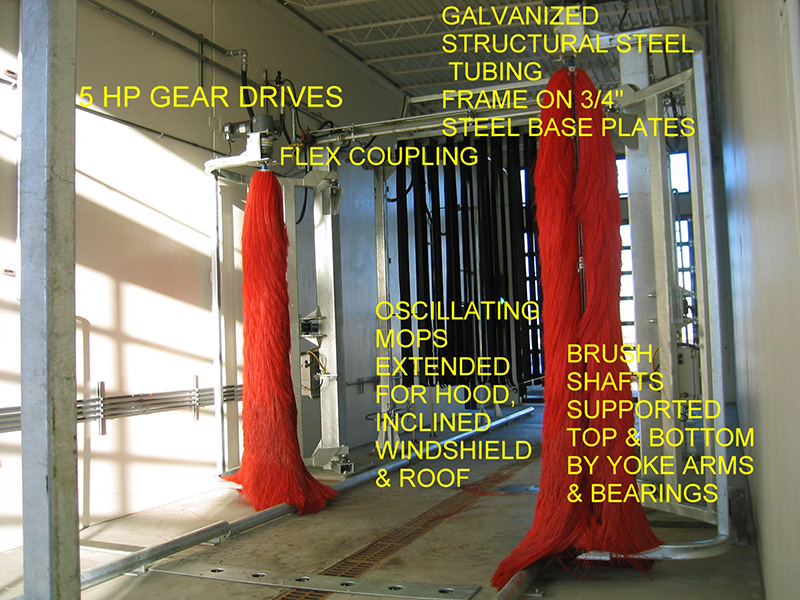

- Structures are made from high strength ASTM tube steel hot dipped galvanized after fabrication, coating both the interior and exterior of structures.
- Hot dipped galvanized Structure Warranty – 15 years.
- Brush Machine Structures are the largest in the industry – 10”x10” by ¼” tube steel.
- Brush Yokes are supported at the top and bottom of a 10” tube upright structure.
- 4X4 Brush Machines have four 10” tube upright structures all integrally braced at the bridge area by 4” tube to provide a rigid uni-braced structure. The largest and strongest structure in the industry.
- Brushes are supported at the top and bottom of the Brush Yoke Structure so the brush gear reducer carries no weight for low maintenance.
- Brushes pivot in a wrap around controlled arc across the front and rear of the vehicle following the bus as it moves for 11’-6” – providing superior wash results front and rear of the vehicle on a drive through basis.
- Brushes are the largest in the industry – 5’-0” in diameter, to avoid mirrors and to provide a soft touch on the vehicle.
- Brush Motors are the largest in the industry – 5 horsepower.
- Gear Reducers are the largest in the industry – 5MCV.
- Air Cylinders are the largest in the industry – 4” diameter bore.
